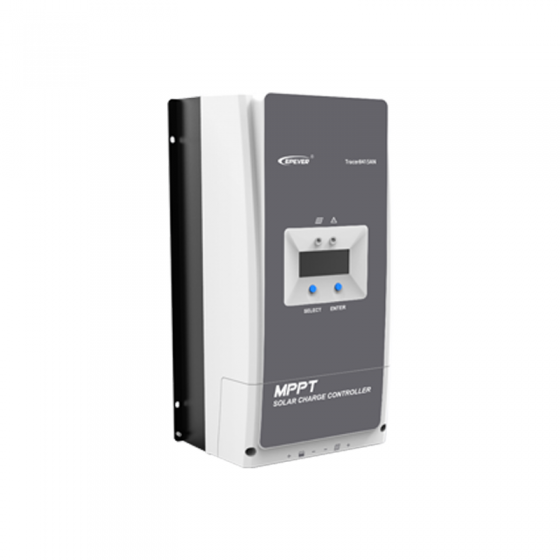

Tracer-AN Series (50A-100A) Solar Charger Controller

Description

The Tracer-AN Series (50A–100A) Solar Charger Controller is engineered for advanced solar power systems, delivering exceptional performance through cutting-edge MPPT (Maximum Power Point Tracking) technology. With a tracking efficiency exceeding 99.5% and peak conversion efficiency of 98%, it ensures optimal energy harvesting even in varying sunlight conditions.

This controller supports multiple battery types including sealed, gel, flooded, and user-defined options, making it highly versatile for different solar setups. Its intelligent charging features include current and power limitation, as well as high-temperature derating, which enhances battery lifespan and system safety.

Designed with a robust die-cast aluminum casing, it offers excellent heat dissipation and durability. The controller supports up to 8 units in parallel, making it scalable for larger systems. Additional features like remote temperature and voltage sensors, isolated RS-485 communication with MODBUS protocol, and triple relay outputs (utility, generator, load) provide enhanced monitoring and control.

Usage Suggestions: Ideal for off-grid and hybrid solar systems in homes, commercial buildings, and industrial applications.
Storage Instructions: Store in a cool, dry place away from moisture and direct sunlight when not in use.

Additional Product Attributes

• Model Series: Tracer-AN

• Current Rating: 50A–100A

• MPPT Efficiency: >99.5%

• Conversion Efficiency: Up to 98%

• Battery Types: Sealed, Gel, Flooded, User-defined

• Communication: RS-485 with MODBUS protocol

• Parallel Support: Up to 8 units

• Cooling System: Passive cooling with aluminum body

• Casing Material: Die-cast aluminum

• Certification: CE (LVD EN/IEC62109, EMC EN61000-6-1/3)

• Grounding: Common negative

• Temperature Features: High-temperature derating

• Sensors: Remote temperature & voltage sensors

• Applications: Residential, commercial, industrial solar systems
